Energy efficiency is highlighted by the Electronically Commutated Motor (ECM) for 1 horsepower models and Variable Frequency Drive (VFD) for 2 horsepower models, which consumes less energy and is less expensive to maintain than traditional belt driven motors.
Sizing a blower is easier than ever before. With both 1 and 2 horsepower models, the vast performance capabilities provide a ventilation solution to almost every application without the need to compare numerous models. 1 horsepower models switch from 115V to 230V with the flip of a switch, literally, for ease of integration to any building. This blower does not disappoint with the streamlined set-up and is tested to operate successfully under harsh conditions.
- All models allow for expanded performance capabilities that cover the full spectrum of fume hood exhaust requirements
- 1 horsepower models feature an energy efficient Electrically Commutated Motor (ECM). UL Listed.
- 2 horsepower models feature an energy efficient Variable Frequency Drive (VFD) motor. UL Listed.
- FRP and PVC models designed with spark resistant construction (AMCA 99 Type A) perfect for applications serving electrically classified hazardous spaces
- Suitable for both new buildings and for replacing existing fans of varying types
- Simple on/off input for switched remote control
- AC Select Switch on 1 horsepower model allows for a single blower to be installed on a 115V or 230V single phase system that also operates on either 50 or 60 Hz
- Blower information output available via RS232 or RS485 signal
- Coated steel models suitable for applications serving Class II Type A2, B2 or C1 Biological Safety Cabinets
- Conforms to ANSI/ASSP Z9.5 for exhaust fans ventilating hazardous materials
- On-board control panel allows 3 input options for RPM selection. A potentiometer for at-blower control, 0-10V or 4-20 mA signal for control via building management system
- On-board screen displays blower status, alarm, RPM, temperature, and input selection indicators for at-a-glance status verification

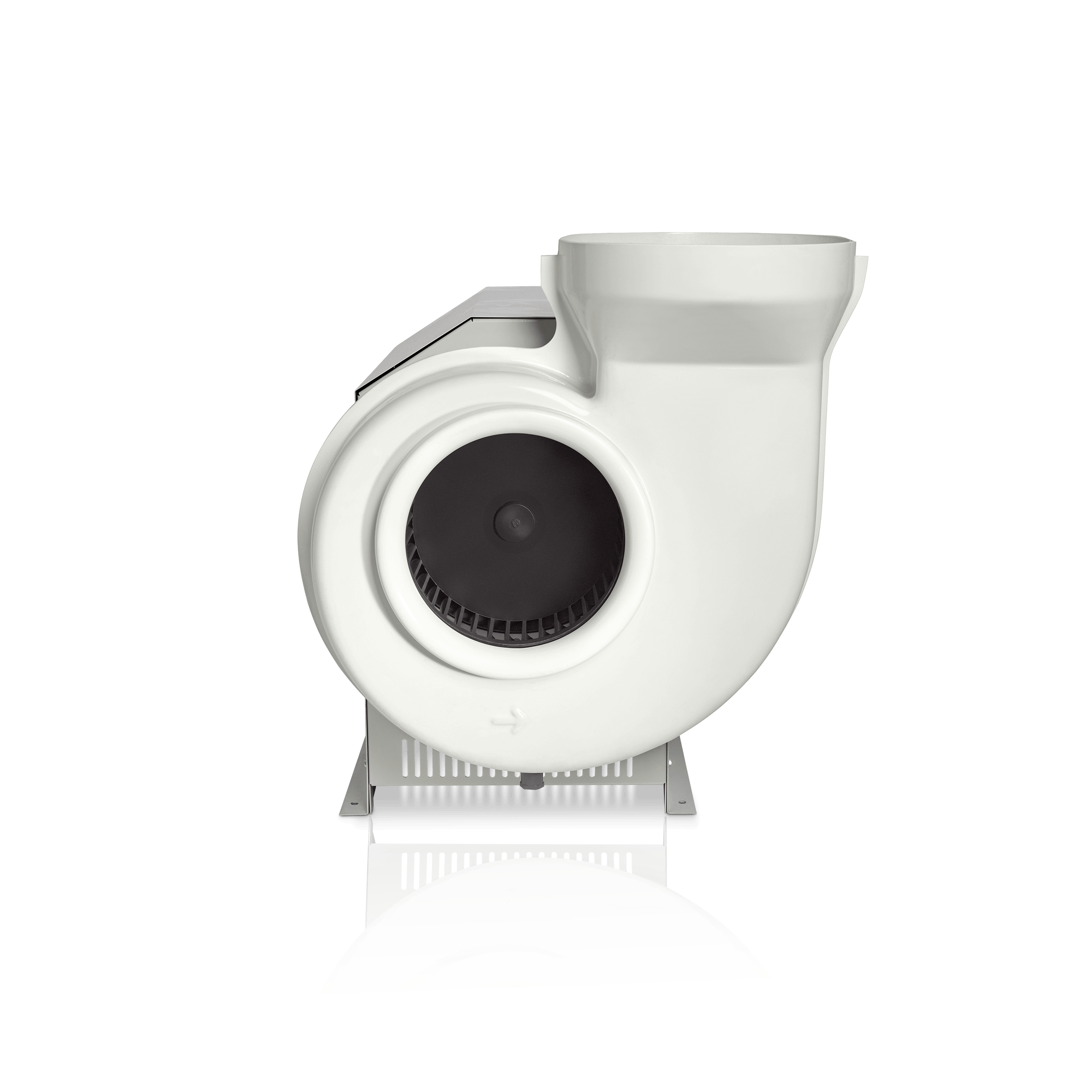

- Materials of construction are Fiberglass Reinforced Polyester (FRP), PVC, and Coated steel construction, available for a wide range of applications
- Blower on/off dry contact for remote blower status notification
